L298 Motor Driver

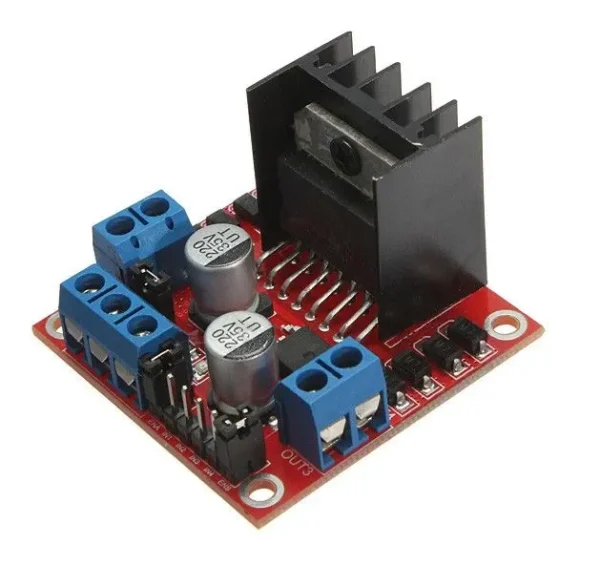

The L298 Motor Driver Board Module For Arduino/Raspberry-pi/Robotics, using ST L298 chip can directly drive two DC motor, and provides a 5V output interface, support 5v and 3.3V MCU control, you can easily control the DC motor speed and direction, you can also control the 2-phase stepper motor. Smart car essential.

Features of L298 Motor Driver Board Module

• Driver chip: L298 dual H-bridge driver chip.
• Terminal driver part of the supply area VMS: +5 V ~ +35 V.
• Drive part of the peak current Io: 2A / Bridge.
• Logical part of the terminal power supply range Vss :4.5-5.5 V.
• Logical part of the operating current range: 0 ~ 36mA.
• The control signal input voltage range: 4.5-5.5V low 0V high.
• Maximum power consumption: 20W.
• Storage temperature: -25 ~ +130.

Applications of L298 Motor Driver Board Module

• Motor driver Circuit.
• Robot rover motor control.
• DIY projects requiring motor driver.
